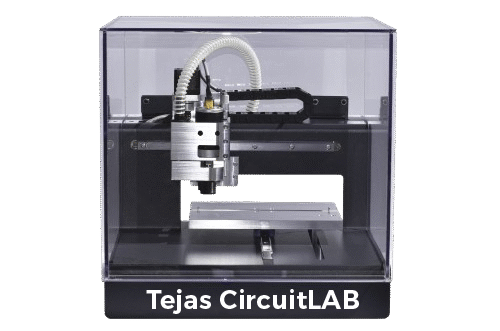

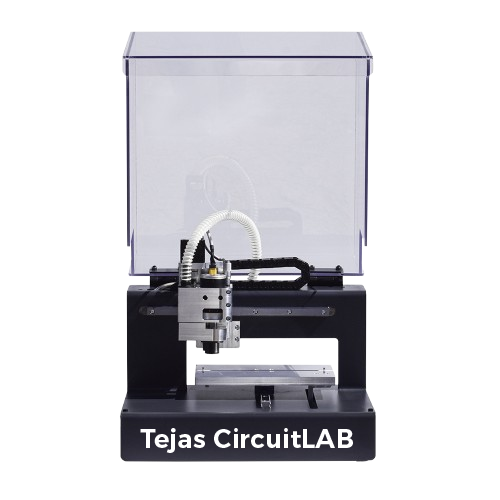

About TEJAS CircuitLAB

TEJAS CircuitLAB is developed under the MAKE in India intitiative and indeed offer notable advantages over many chinese counterparts, especially when it comes to software intergration, ease of use and support.

TEJAS CircuitLAB offers numerous advantages for students, university research and project work.

– Hands on Training
– Rapid Prototyping
– Research Flexibility
– Promotes Entrepreneurship and Innovation
– Skill Development for Industry Readiness

DirectorRobofi Technologies Pvt. Ltd.

PRECISE DEPTH ADJUSTMENT

Extreme precision for fine PCB details. Enables reliable Milling, Drilling and Engraving.

SOFTWARE TRACKMAKER

Integrated Machine Control and CAM Software for PCB Prototyping in the Market.

USB INTERFACED

Compatibility with modern compute. Plug-and-play support, faster Data Transfer and Buffering

TECHNICAL SPECIFICATION

Working Area: 240 (X)mm180(Y)mm30(Z)mm
Spindle motor: 400W Brushless motor 20000 RPM/Min
Principal axis collet: ER11/3.175 mm
Positional accuracy: 0.02mm
Resolution: 0.01mm
Maximum Speed: 0-4000mm/min
Travel X/Y Speed: 60mm/sec
Table Type: flat milled aluminium table with central T-slot
Computer connection: USB cable
Software: TrackMaker Software with USB Dongle License, EDWinXP Software
Drilling Stroke: upto 80 strokes/min
Command Code: G code, GERBER File
Protection: Emergency stop button
Material: PCB Acrylic, MDF Board, Copper Clads
Applications: Drilling, Milling, Engraving
Dust extraction unit with software controlled On/Off
Switching For Consistent and Effective Dust Removal
Cabinet: Hood Cabinet
Accessories: Tool Bits (Engraving, Milling, Routing, Drilling)
Single side and Double side Copper Clads
